Slide On MOES Zigbee Scene Switch Mount For UK Light Switch

Description

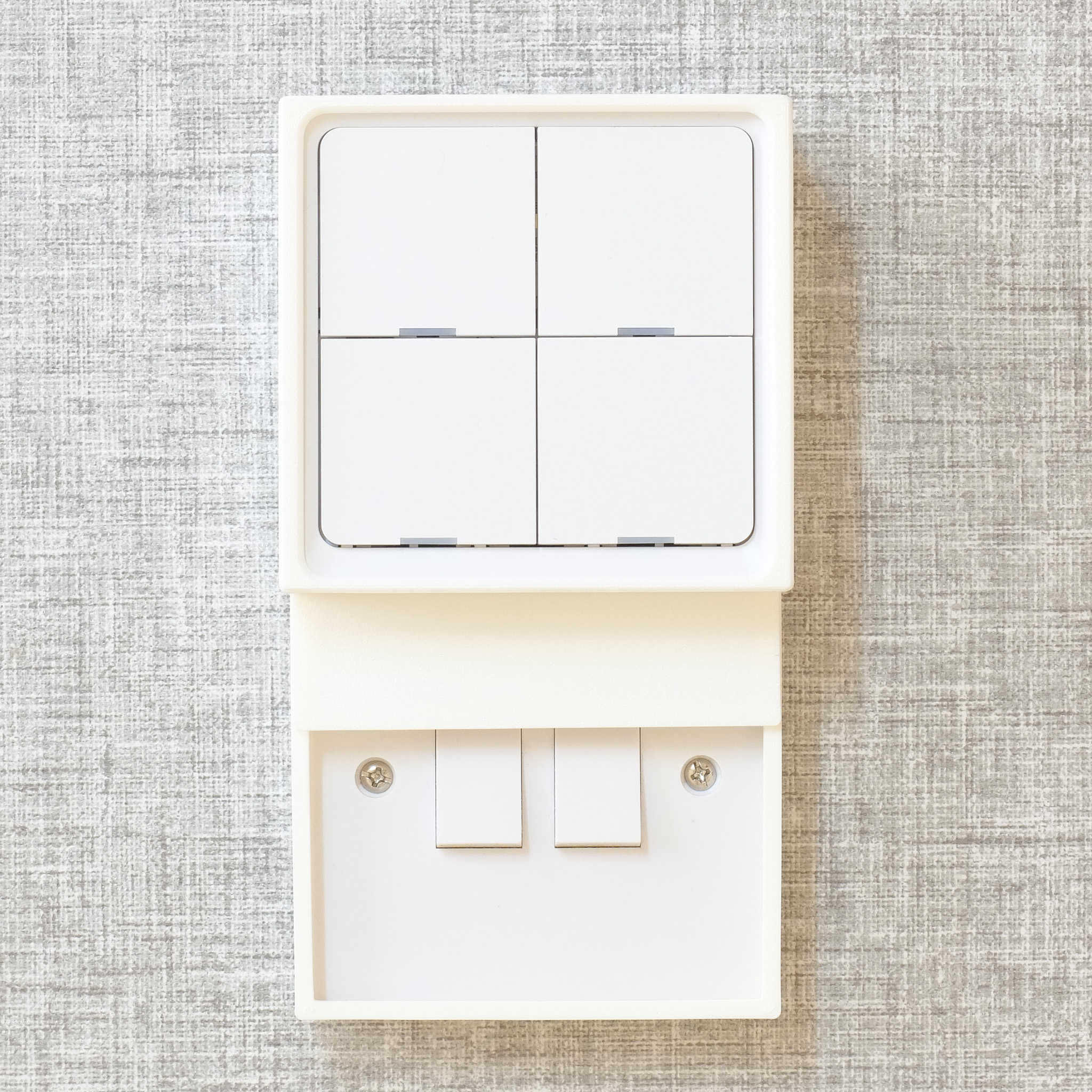

3 part slide on mount for the MOES Zigbee Scene Switch. Covers a standard UK Light switch

Please note, MOES have introduced later, Zigbee 3 versions of their scene switches that do not have a ‘frame’ around the buttons.
This mount will only fit the original 1, 2, 3 and 4 button scene switches indicated in one of the product images.
Do not order if you have the Zigbee 3 version.

This item is primarily intended for homes with smart light bulbs installed, allowing a physical barrier to be placed over light switches, preventing them from being turned off, while at the same time, mounting a smart switch for controlling lighting via automations. The cover can be slid upwards for easy access to the physcal switch if needed.

The design consists of three parts:

1. Rear frame
   Fitted by simply loosening the screws on the switch plate and sliding the rear of the frame behind the plate.
2. Middle Plate
   Slides between the rear frame and front cover, preventing the smart switch from toggling the physical light switch.
3. Front cover
   Slides over the rear frame and middle plate. The smart switch is inserted from the rear of the front cover prior to installation.

Compatible with most standard UK (single plate) light switches:

Will fit around a standard, single (86mm square) UK switch plate. Maximum depth (tip of the switch to the wall) is 16mm:

Please check the dimensions of your switch before ordering!!

Dimensions 92.6mm wide, 89.6mm high, 32mm deep.

3D Printed Products
The nature of 3D printing means that layer lines may be visible under certain lighting conditions/angles.
There may also be other minor surface imperfections but these will not be visible at normal viewing distances.
We need you to be aware this is a 3D printed product!
