Lenovo Tab M8 Gen 4 Wall Mount

Description

3D Printed Wall mount designed for the 8 inch Lenovo Tab M8 Generation 4 released in 2023.

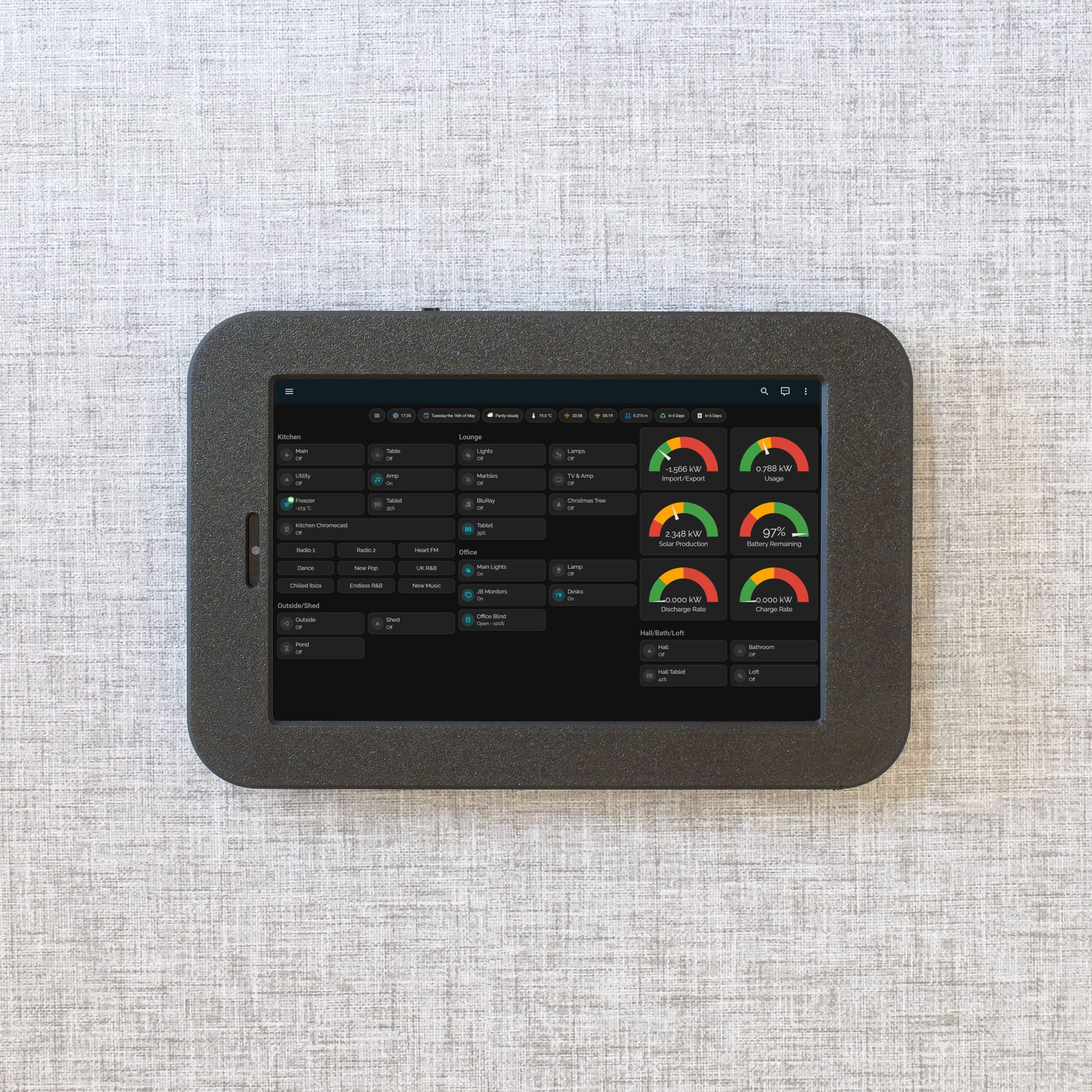

Primarily intended for use with home automation dashboards such as Home Assistant, Hubitat, ActionTiles (SmartThings), OpenHAB, etc but has many other applications such as CCTV displays, Visitor recording or informational displays.

Designed to use a readily available 90 degree USB-C Cable (UGREEN) and hide the cable from view.

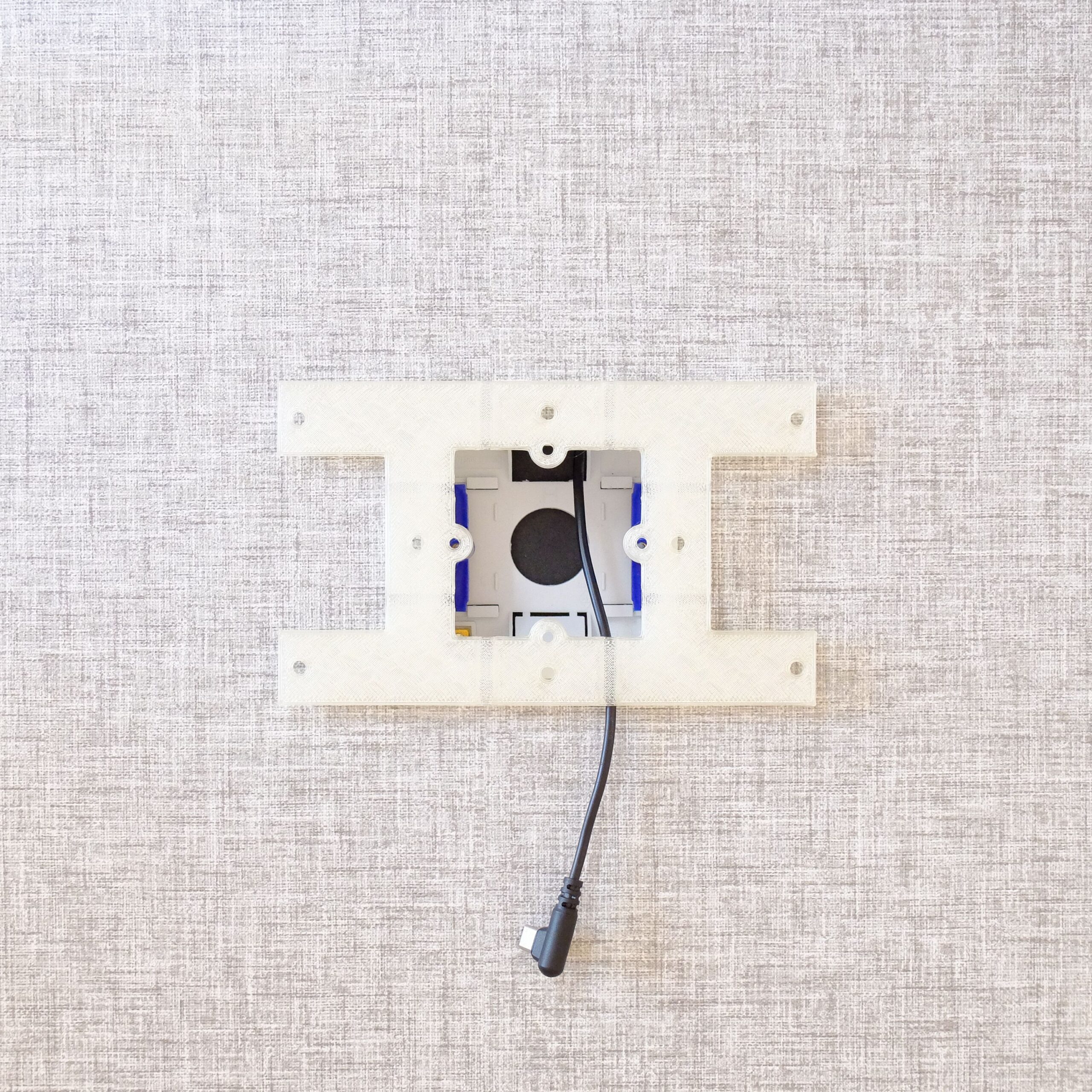

A spacer allows the tablet to ‘float’ away from the wall, while allowing the USB cable to enter a wall box, completely hidden from view. The spacing also allows the charging cable to run down the wall in some surface mounted conduit (trunking) if required.

Mounting holes are provided for direct attachment to both UK (60mm hole spacing) and US (83.34mm hole spacing) single back boxes with additional mounting holes for screwing directly to a wall if needed.
It is also possible to glue the spacer to the rear tablet frame and use command strips for less invasive method of wall mounting.

There is also an extension to the power button, allowing the tablet to be shut down/restarted while in the mount.

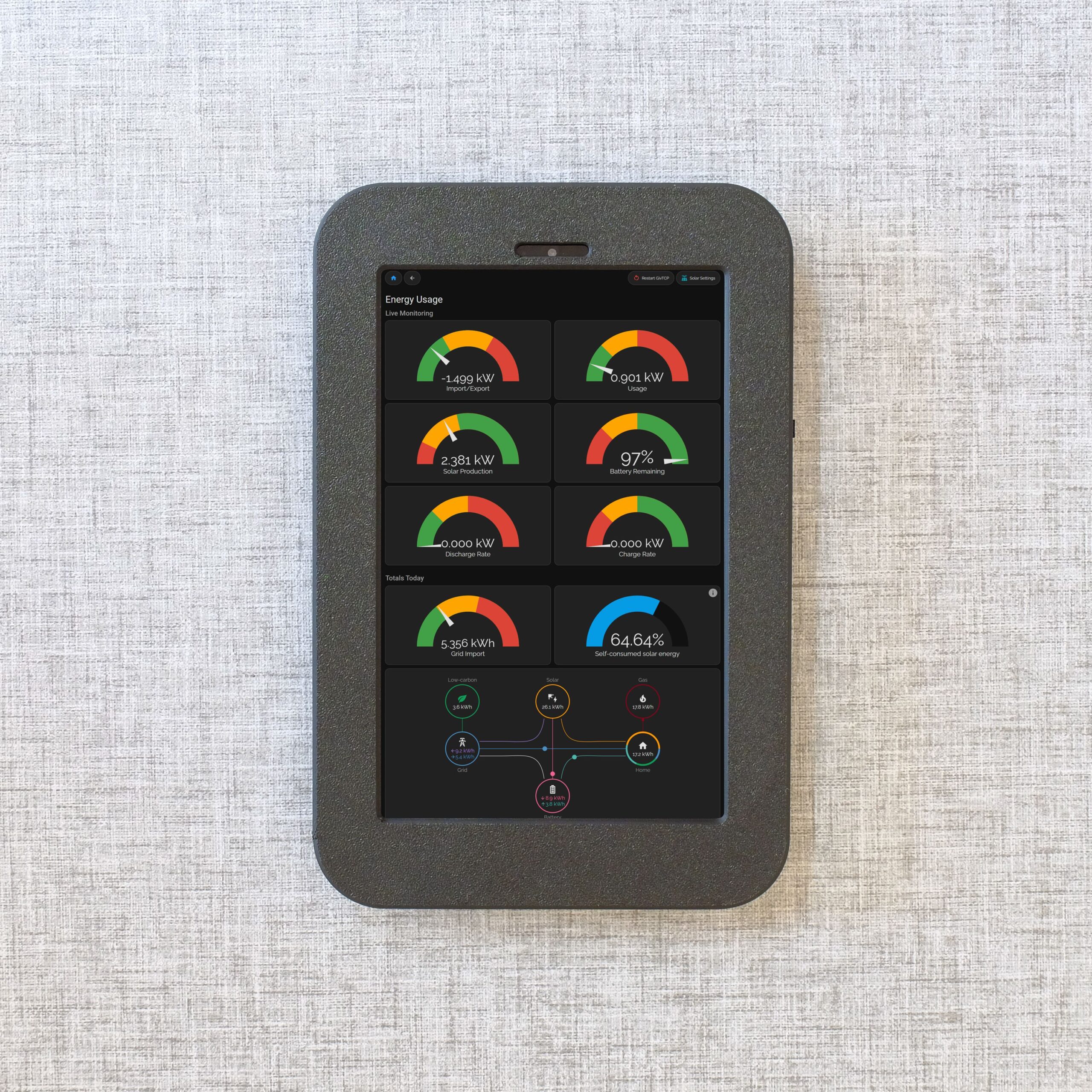

Tablet can be mounted in landscape or portrait orientation.

Dimensions (assembled frame): Height: 151.46mm | Width: 229.6mm | Depth: 13.9mm | Spacer Thickness: 5mm

What’s included:

• Rear Spacer

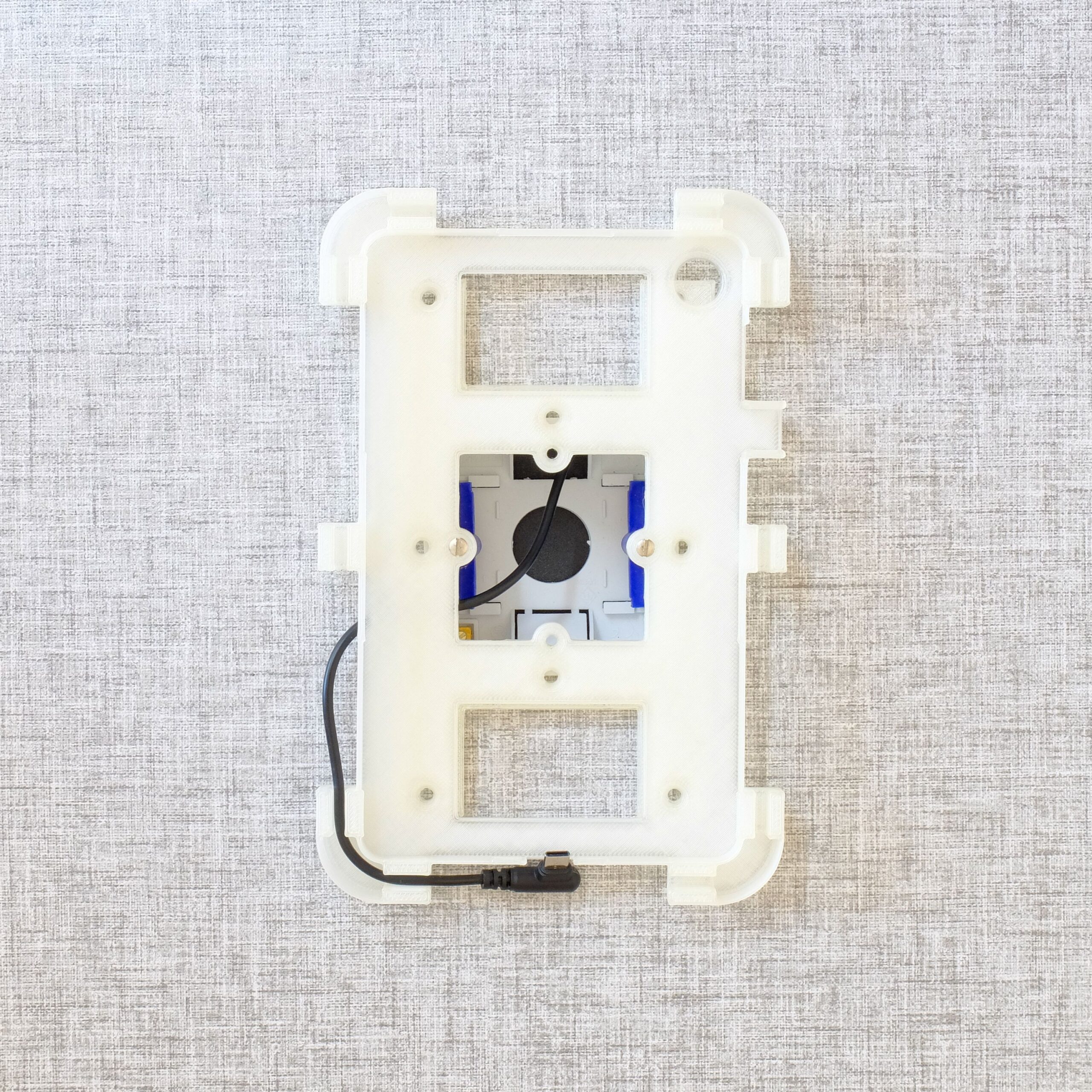

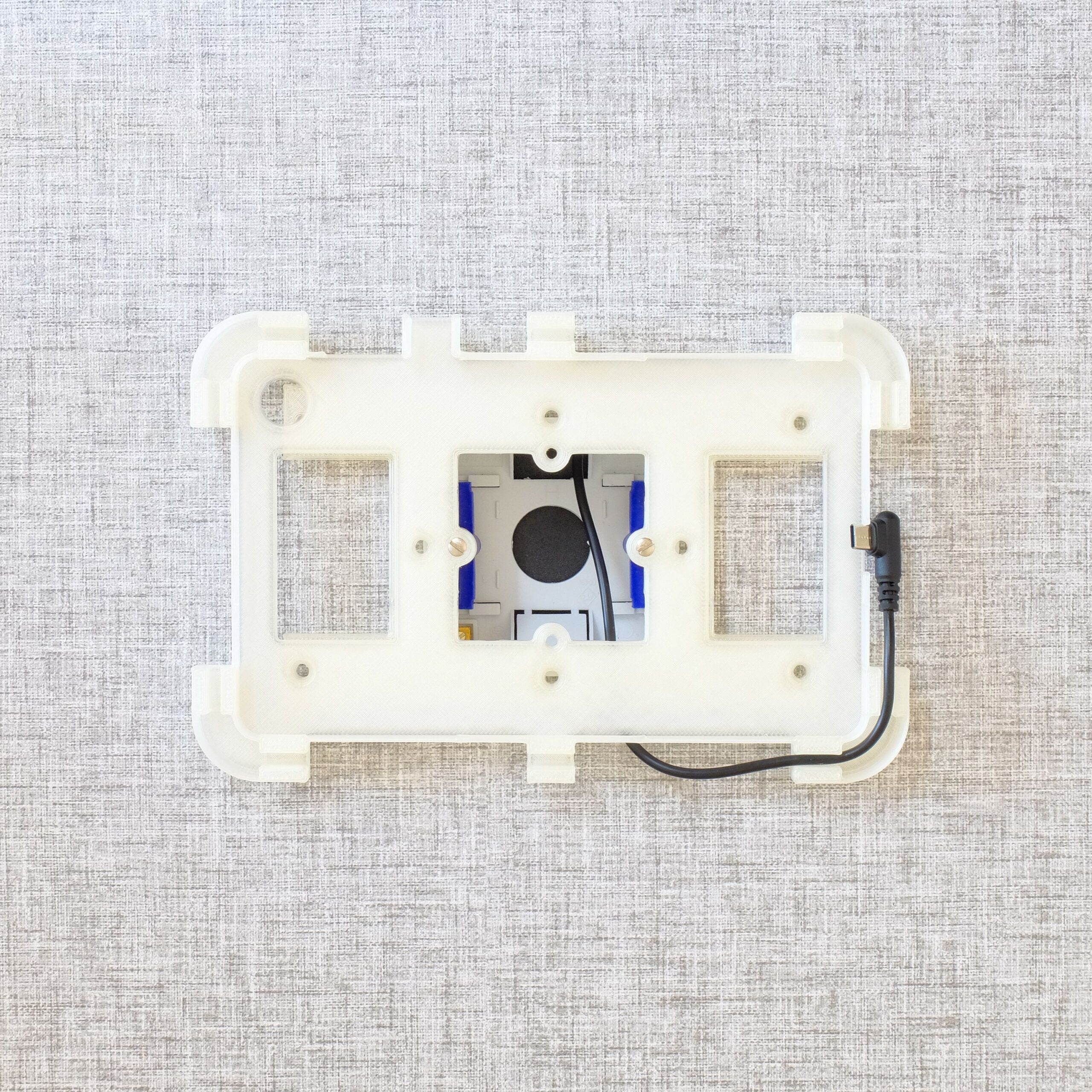

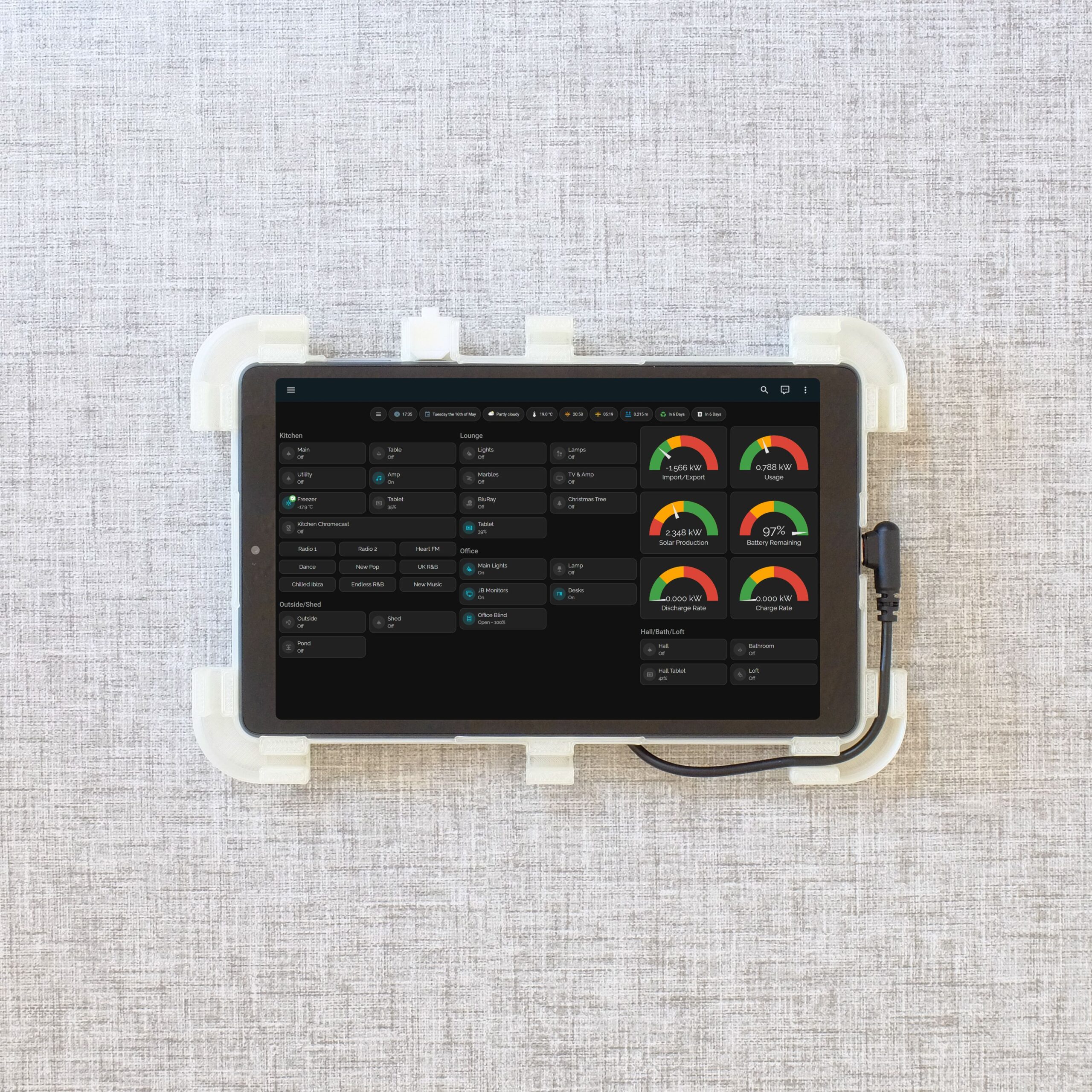

• Tablet Rear Frame
• Power Button Extender
• Tablet Front Frame

We do not supply screws or fixings.
A compatible USB cable is available as an optional item.

NOTES ON COLOURS & FINISHES

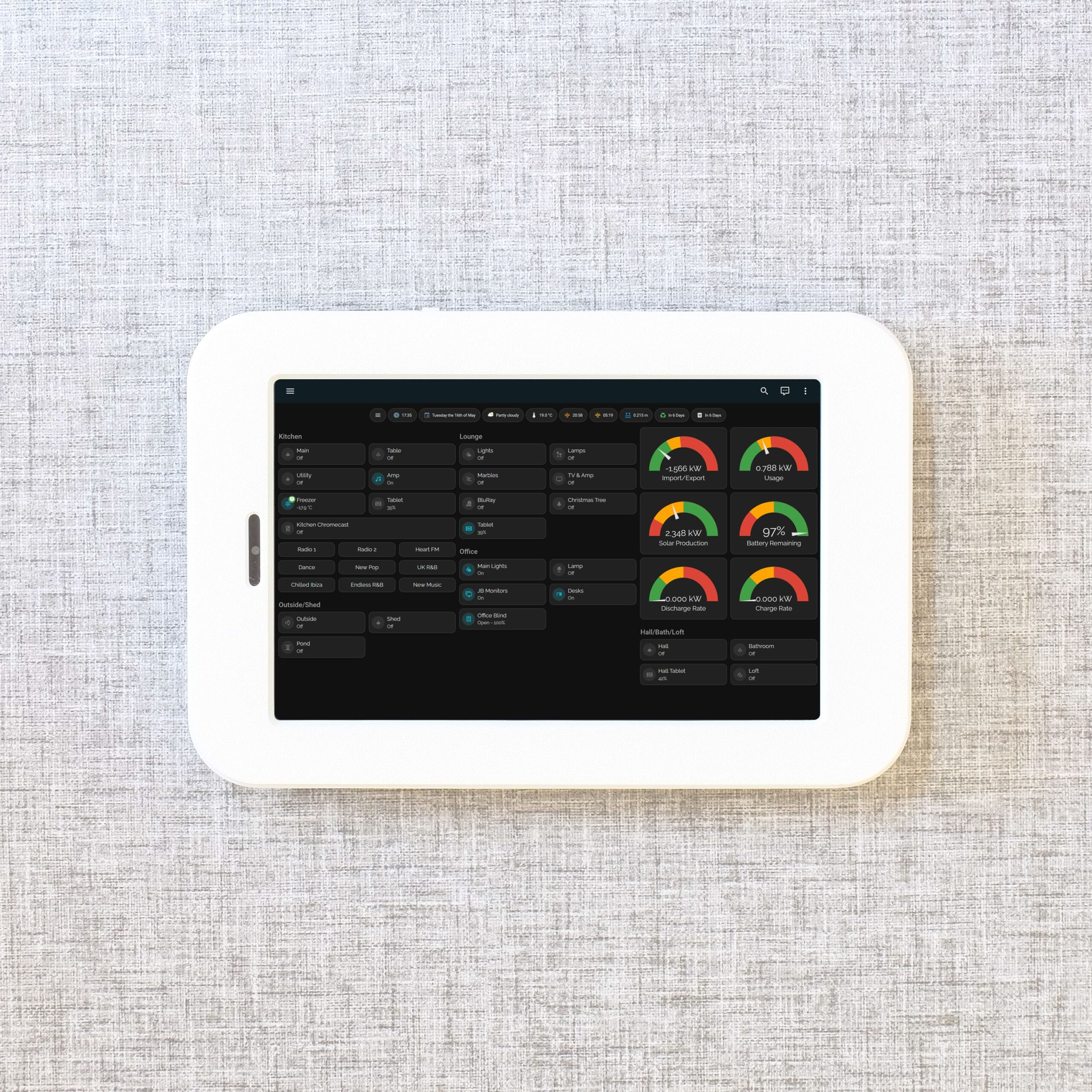

The front frame and power switch will be printed in your chosen colour. The remaining parts (rear frame and spacer) are not visible and will either be printed in your chosen colour or natural uncoloured filament. This will dependent on printer availability and has no bearing on the outward appearance of the wall mount.

3D Printed Surface
We print the front frames on a textured bed which results in a light stippled texturing of the front surface. This helps to break up any visible extrusion lines on the surfaces and produces a very presentable finish. The nature of 3D printing does mean lines may be visible under certain lighting conditions/angles. There may also be very small imperfections on the side surfaces but these will be extremely difficult to see at normal viewing distances.

We go to great lengths to produce presentable 3D printed products and do not dispatch anything we would not be happy to place on our own wall.

If you have particularly exacting standards, you can apply paint finishes to the frames to match your décor. Some hand sanding and filling may be required.
DO NOT USE POWER SANDERS – YOU WILL MELT THE SURFACE OF THE 3D PRINT!
