EP1 Case with QR Mounting System

Description

Black or White 3D Printed Case for the Everything Presence One sensor from Everything Smart Technology

We are the designers of the official case. This version has been made available in agreement with Lewis from Everything Smart Technology.

• Revised rear section:
  Modified to allow clearance for a readily available 90 degree USB-C adaptor facilitating rear cable entry.
• New 3D Room QR Sensor Mounting:
  • Replaces the original fixed stand/ball and socket.
  • Rotation available at both ends.
  • M3 Hex Screws allow the mounting arm to be locked in position.
  • Quick release base plate for simple wall mounting.
  • 2 arm lengths (30mm and 60mm) included for flexible mounting options.

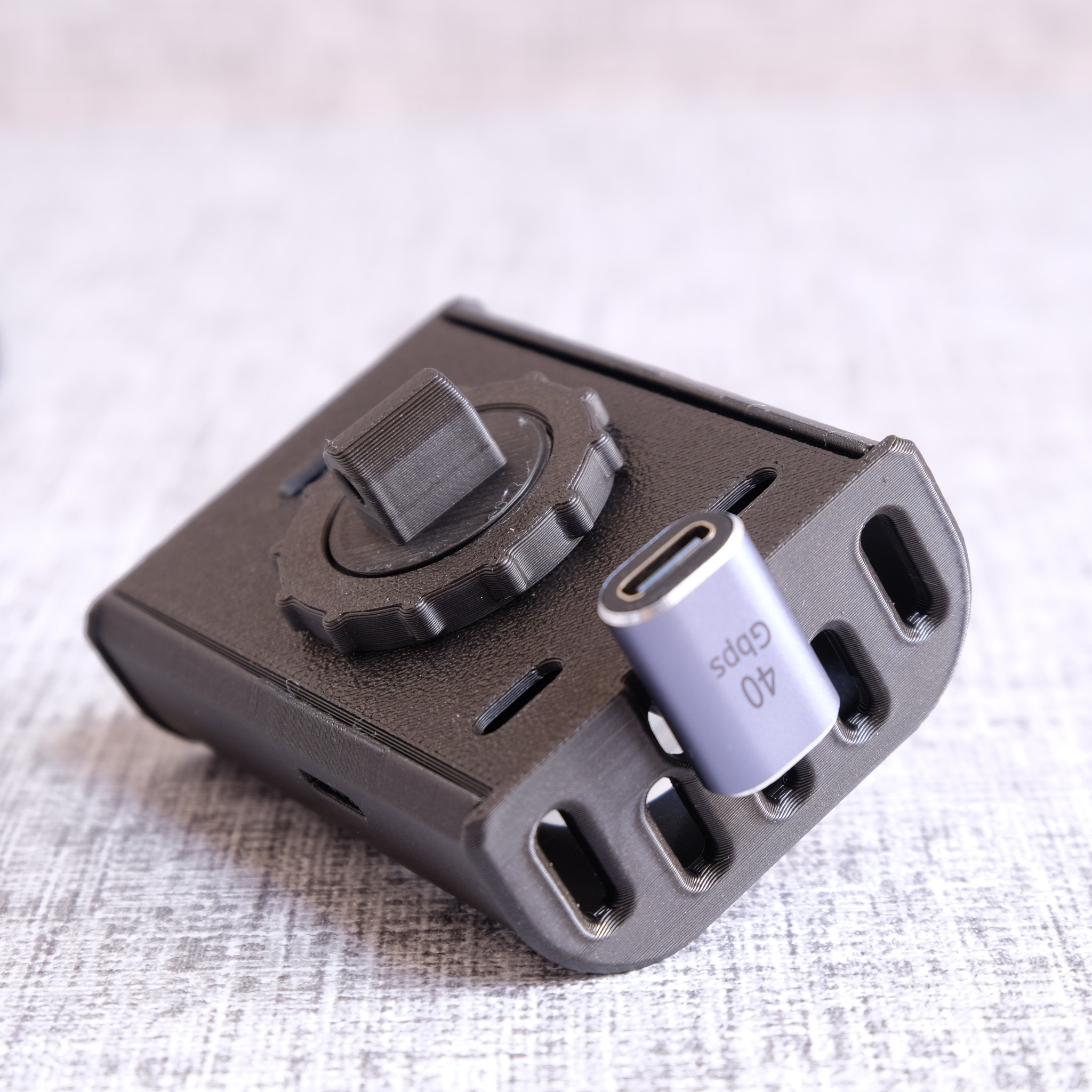

Note: This version of the case is designed to be used with either the 90 degree USB-C adaptor pictured, or a 90 degree USB-C cable. There is not enough clearance between the case and base-plate for  a straight USB-C cable.

The right angle USB-C adaptor is readily available from a number of sellers on Amazon, eBay, Aliexpress, etc.

Wall Mounting
We recommend wall mounting the base plate using either Command Strips or 3M double sided adhesive pads.
No facility for screw mounting to walls has been provided.

What’s included?

• Front Cover
• Rear Case Section
• QR Stand Base
• 60mm Arm
• 30mm Arm
• 2 x Swivel/Tilt ends
• 2 x Locking Nuts
• 2 x M3 Hex Screws and Nuts

Does not include the EP1 Sensor, Right Angle USB-C adaptor, Hex wrench/key, adhesive pads etc.

White cases are printed using Titanium White PLA produced in the UK by 3DQF. This produces a more muted white when compared with the cases supplied by Everything Smart Technology.

Black cases are printed using Jet Black PLA produced in the UK by 3DQF.
