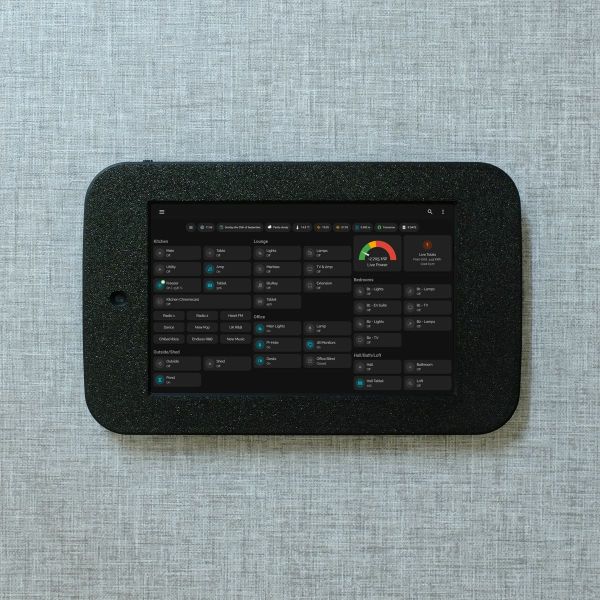

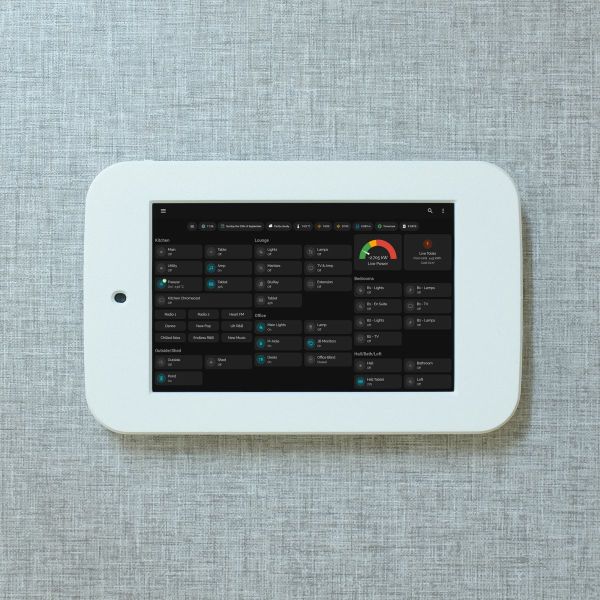

Nvidia Shield K1 Tablet Wall Mount

Description

3D Printed Wall mount designed for the Nvidia Shield K1 Tablet, released in 2015. Primarily intended as a dashboard for home automation systems such as Home Assistant.

Designed to use a readily available 90 degree ‘Left Angle’ Micro-USB Cable (StarTech USBAUB1MLA) and hide the cable from view.

Cable Note:
The right angle cable we provide as an option for our Fire HD tablets will fit but the connector runs in the opposite direction so the cable has to be routed directly under the rear tablet frame, removing the flexibility of using the cable channel.

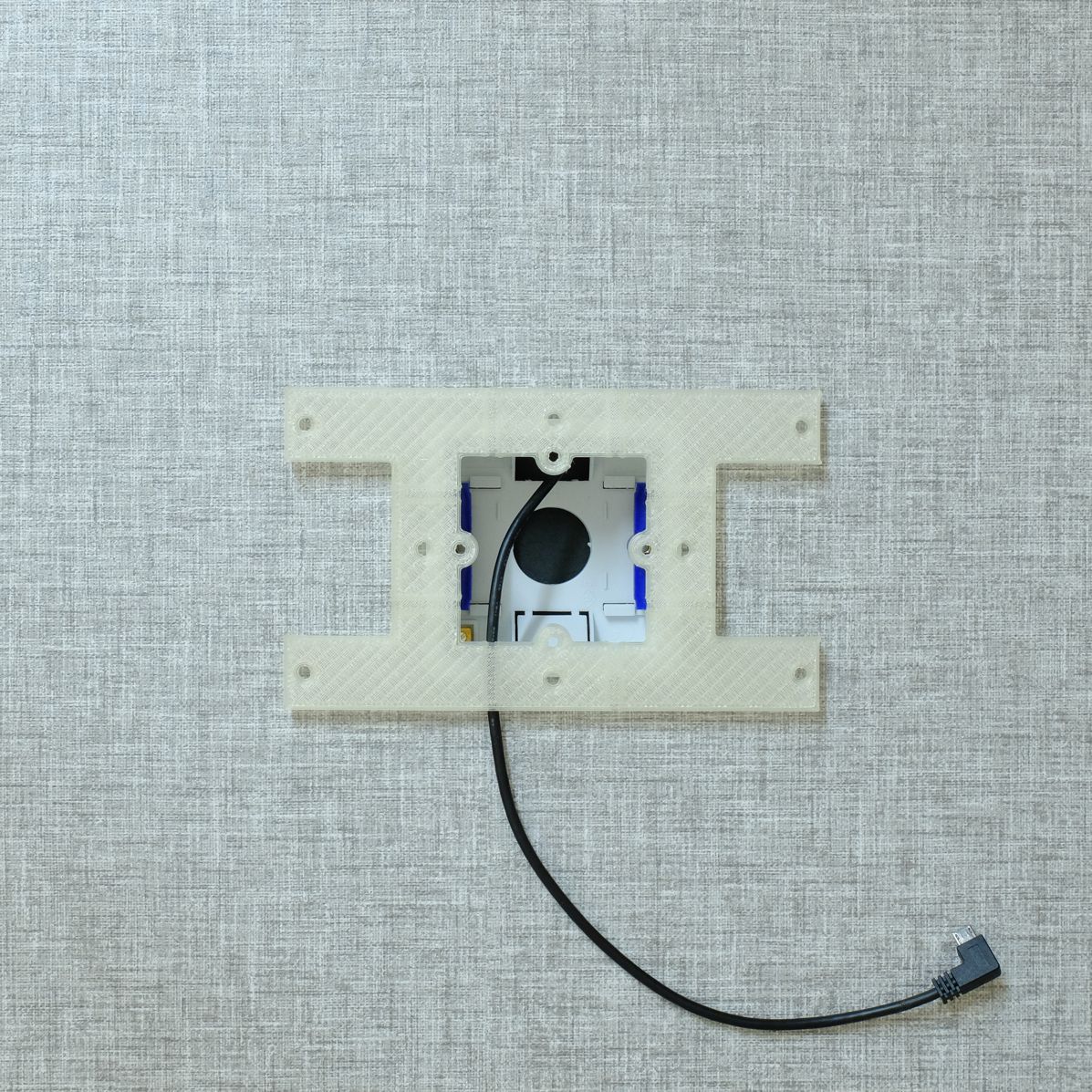

A spacer allows the tablet to ‘float’ away from the wall, while allowing the USB cable to enter a wall box, completely hidden from view. The spacing also allows the charging cable to run down the wall in some surface mounted conduit (trunking) if required

Mounting holes are provided for direct attachment to both UK (60mm hole spacing) and US (83.34mm hole spacing) single back boxes with additional mounting holes for screwing directly to a wall if needed.
It is also possible to glue the spacer to the rear tablet frame and use command strips for less invasive method of wall mounting.

There is also an extension to the power button, allowing the tablet to be shut down/restarted while in the mount.

Tablet can be mounted in landscape or portrait orientation.

Dimensions (assembled frame): Height: 157mm | Width: 252mm | Depth: 14mm | Spacer Thickness: 5mm

What’s included:

• Rear Spacer

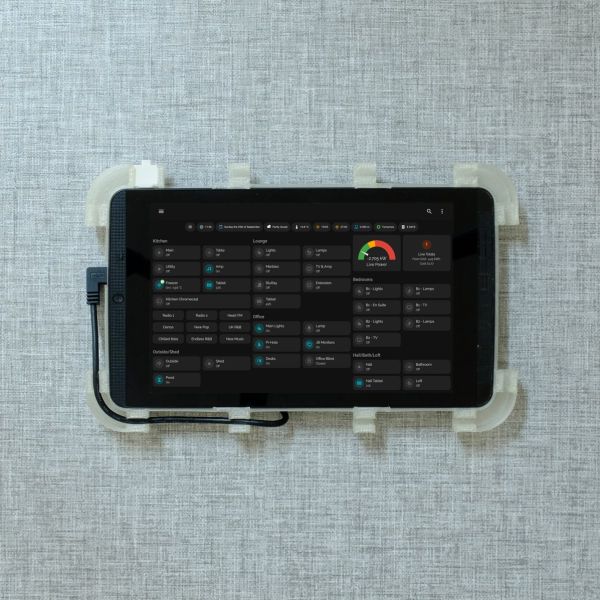

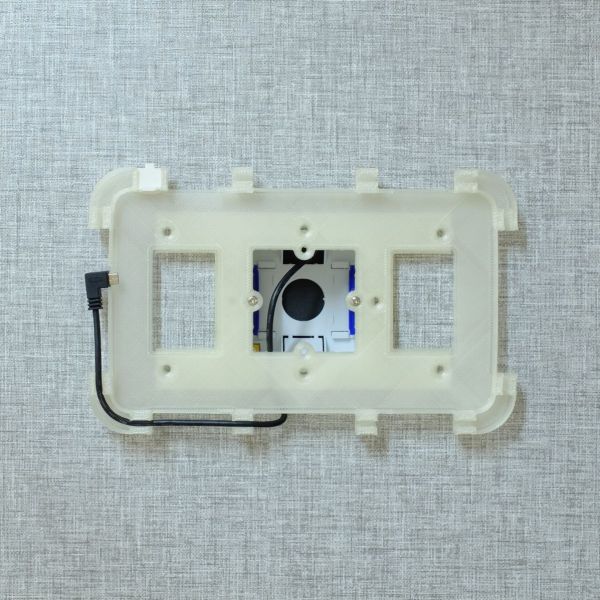

• Tablet Rear Frame
• Power Button Extender
• Tablet Front Frame

We do not supply screws or fixings, just the 3D printed parts.

NOTES ON COLOURS & FINISHES

The front frame and power switch will be printed in your chosen colour. The remaining parts (rear frame and spacer) will either be printed in your chosen colour or using Grey/Natural filament depending on printer availability. This has no bearing on the outward appearance as the spacer and rear frame are not visible when the wall mount is assembled.

We print the front frames on a textured bed which results in a light stippled texturing of the front surface. This helps to break up any visible extrusion lines on the surfaces and produces a very presentable finish. The nature of 3D printing does mean lines may be visible under certain lighting conditions/angles. There may also be very small imperfections on the side surfaces but these will be extremely difficult to see at normal viewing distances.

We go to great lengths to produce presentable 3D printed products and do not dispatch anything we would not be happy to place on our own wall.

If you have particularly exacting standards, you can apply paint finishes to the frames to match your décor. Some hand sanding and filling may be required.
DO NOT USE POWER SANDERS – YOU WILL MELT THE SURFACE OF THE 3D PRINT!
