Samsung Galaxy Tab S6 Lite Wall Mount

Description

3D Printed Wall mount designed for the 10.4 inch Samsung Galaxy Tab S6 Lite tablet first released in 2020.
This mount will fit all versions/variants of the S6 lite, as the body dimensions, screen size, button and port locations have not changed between the 2020, 2022 and 2024 releases.

Specific model numbers:
2020 Release: SM-P610N, SM-P615, SM-P610
2022 Release: SM-P613, SM-P619
2024 Release: SM-P620, SM-P625

Primarily intended for use with home automation dashboards such as Home Assistant, Hubitat, ActionTiles (SmartThings), OpenHAB, etc, but also suitable for CCTV displays, access control and security systems.

Designed to use a readily available 90 degree USB-C Cable (UGREEN) and hide the cable from view (compatible cable available as an option).

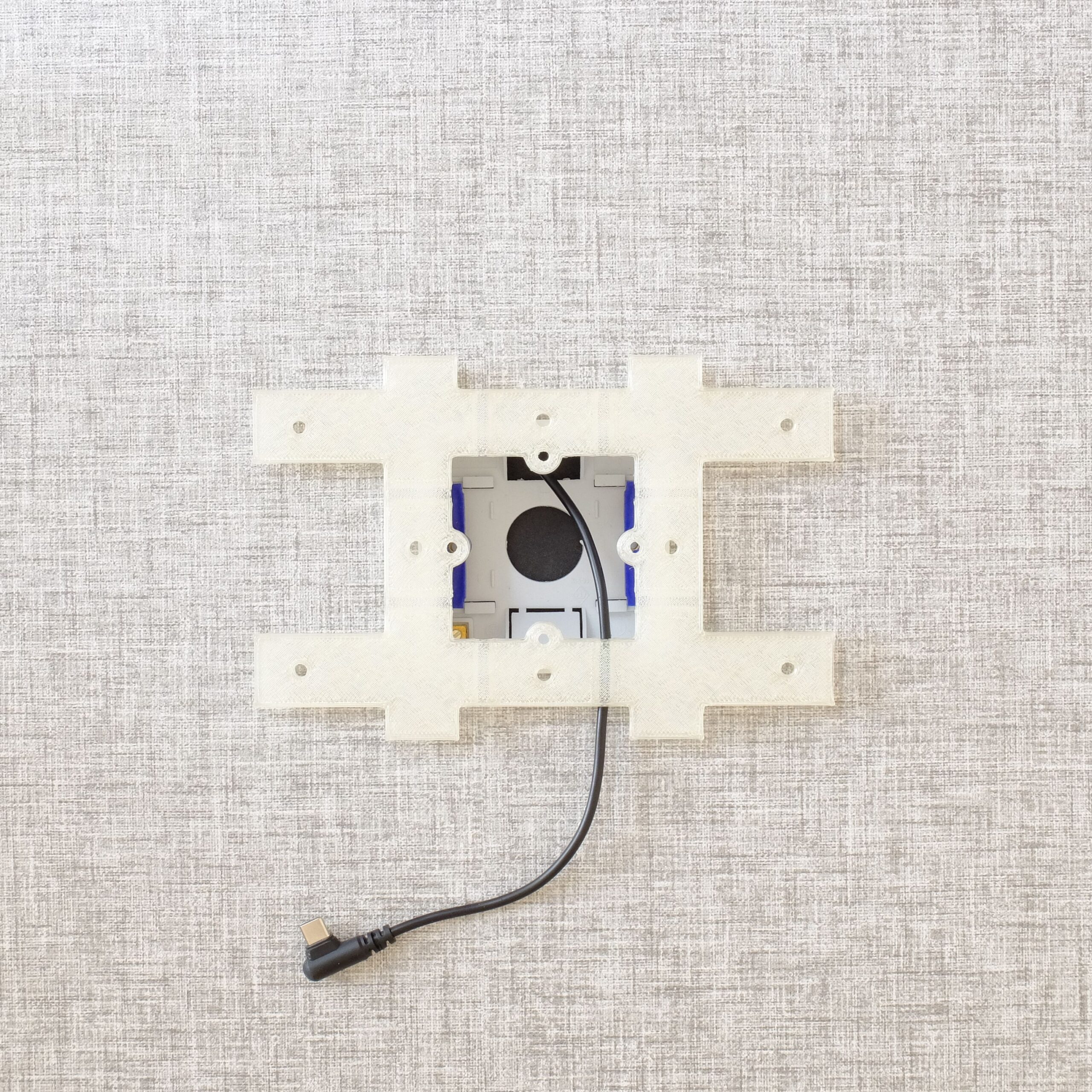

A spacer allows the tablet to ‘float’ away from the wall, while allowing the USB cable to enter a wall box, completely hidden from view. The spacing also allows the charging cable to run down the wall in some surface mounted conduit (trunking) if required.

Mounting holes are provided for direct attachment to both UK (60mm hole spacing) and US (83.34mm hole spacing) single back boxes with additional mounting holes for screwing directly to a wall if needed.
It is also possible to glue the spacer to the rear tablet frame and use command strips for less invasive method of wall mounting.

There is also an extension to the power button, allowing the tablet to be shut down/restarted while in the mount.

Tablet can be mounted in landscape or portrait orientation.

We produce this wall mount with 2 front frame options:

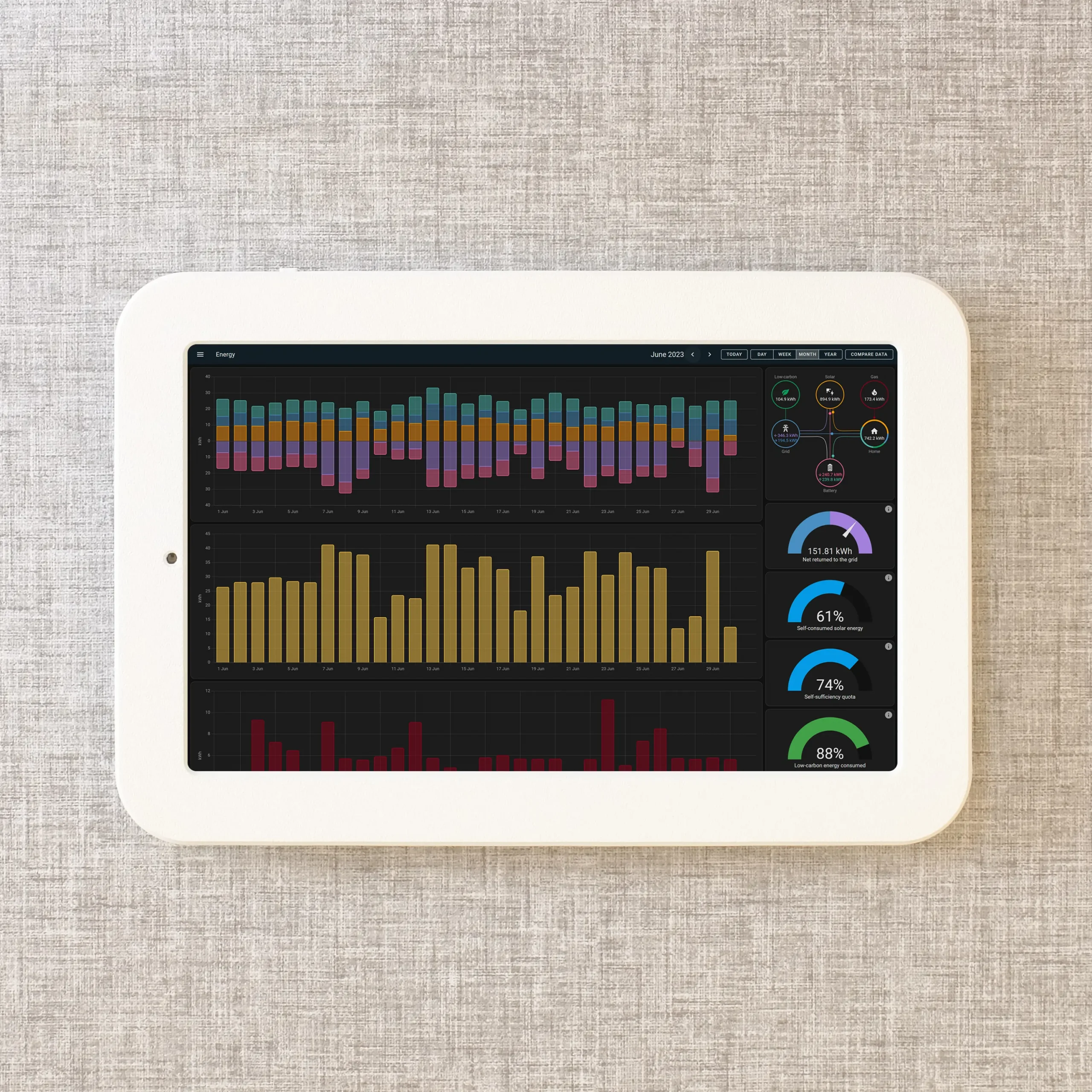

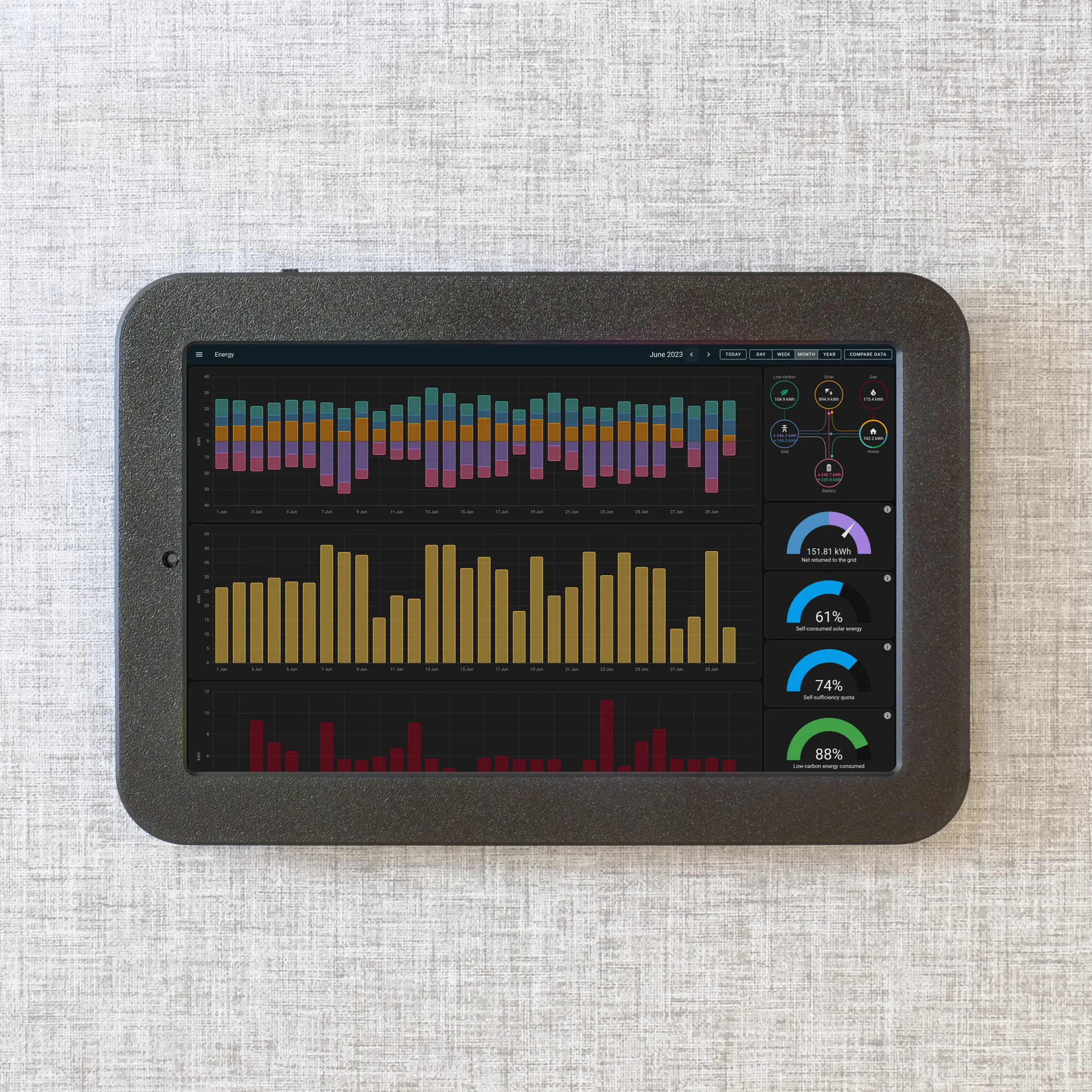

1. Full Frame – with camera hole
   This option accurately frames the screen and exposes the front facing camera within a small hole in the frame.
   PLEASE NOTE – the full frame version does not expose the ambient light sensor. It is not located next to the camera so creating an opening for it ruins the appearance of the mount

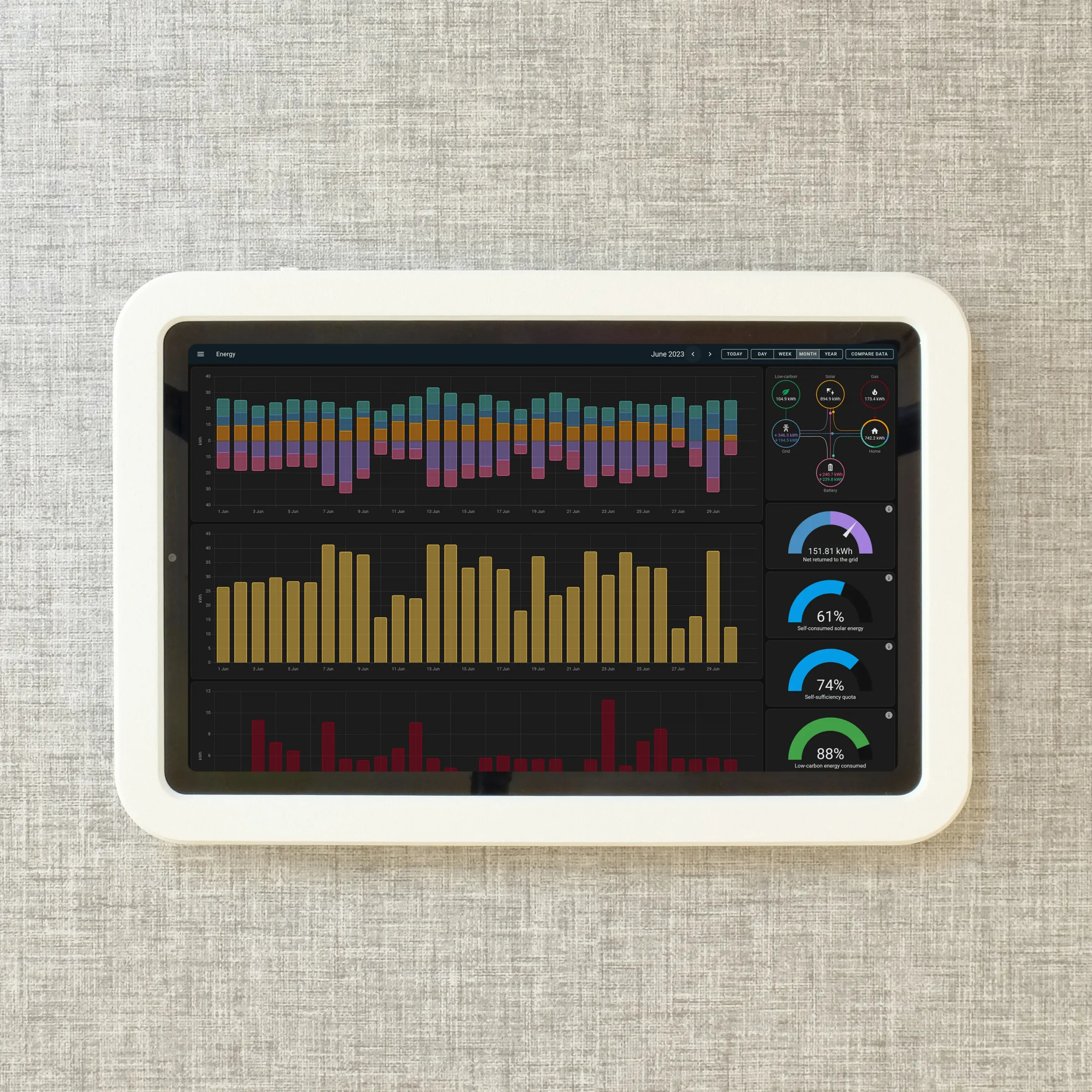

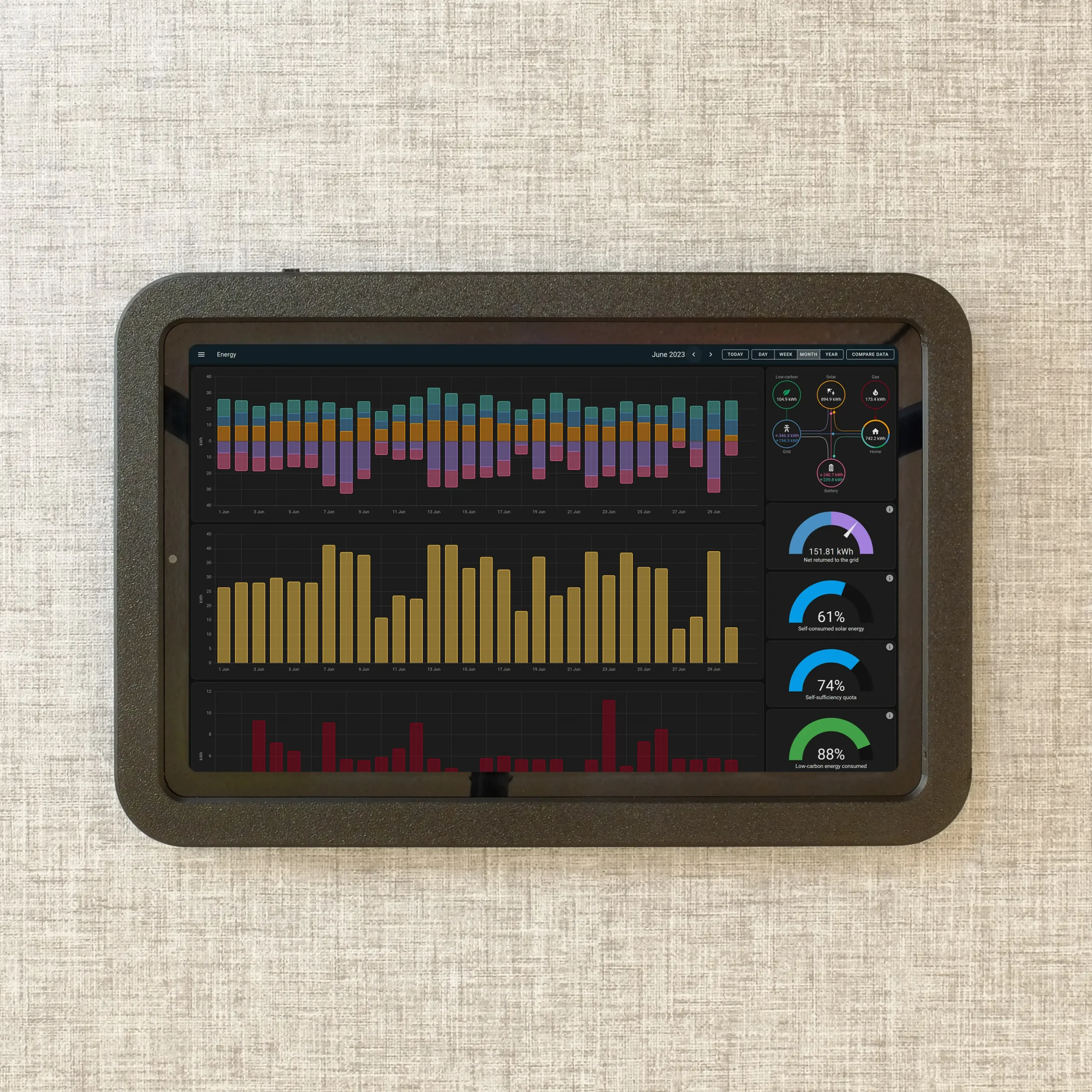

2. Narrow Frame
   This option has a thinner frame covering the cable channels and tablet edge – exposes both the camera and ambient light sensor .

All outer dimensions are the same.

Dimensions (assembled frame): Height: 182.1mm | Width: 273.3mm | Depth: 11.8mm | Spacer Thickness: 5mm

What’s included:

• Rear Spacer

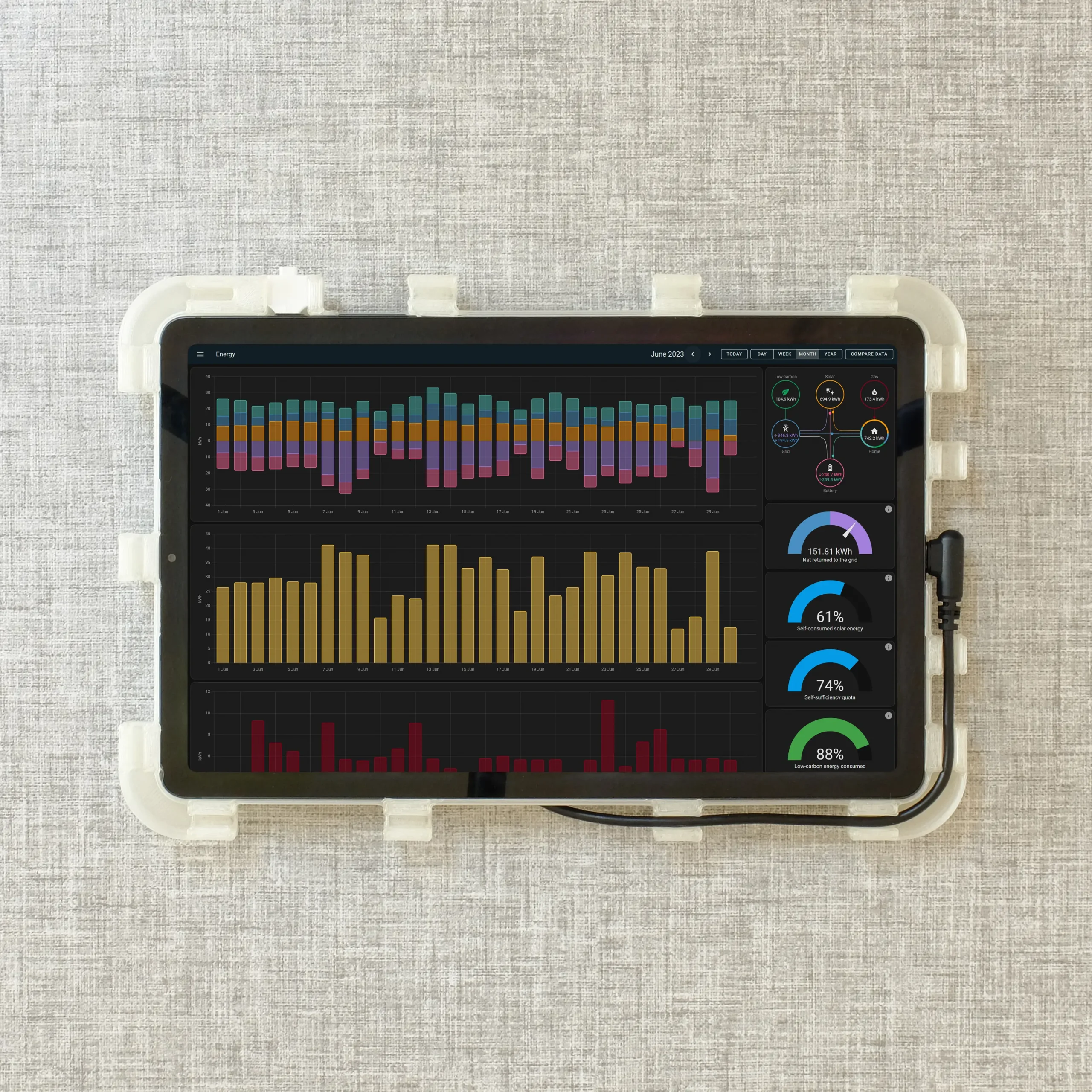

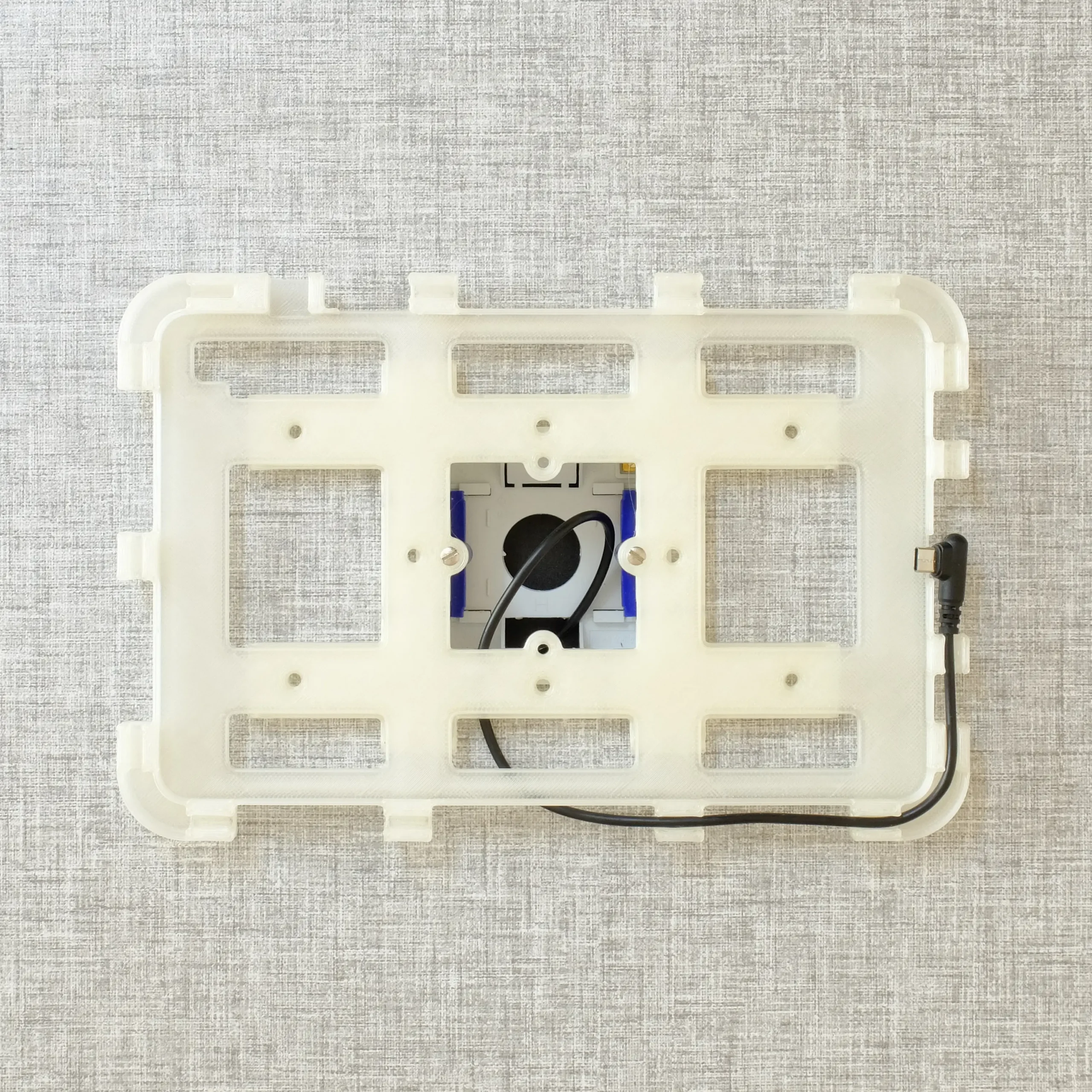

• Tablet Rear Frame
• Power Button Extender
• Tablet Front Frame

We do not supply screws or fixings.
A compatible USB cable is available as an optional item.

NOTES ON COLOURS & FINISHES

The front frame and power switch will be printed in your chosen colour. The remaining parts (rear frame and spacer) are not visible and will either be printed in your chosen colour or natural uncoloured filament. This will dependent on printer availability and has no bearing on the outward appearance of the wall mount.

3D Printed Surface
We print the front frames on a textured bed which results in a light stippled texturing of the front surface. This helps to break up any visible extrusion lines on the surfaces and produces a very presentable finish. The nature of 3D printing does mean lines may be visible under certain lighting conditions/angles. There may also be very small imperfections on the side surfaces but these will be extremely difficult to see at normal viewing distances.

We go to great lengths to produce presentable 3D printed products and do not dispatch anything we would not be happy to place on our own wall.

If you have particularly exacting standards, you can apply paint finishes to the frames to match your décor. Some hand sanding and filling may be required.
DO NOT USE POWER SANDERS – YOU WILL MELT THE SURFACE OF THE 3D PRINT!
